Company Overview

Custom Electronic PCB Manufacturing and Assembly

Founded in 1997, ExPlus Co., Ltd. is a Taiwan-based PCB manufacturer specializing in printed circuit boards and electronics manufacturing services (EMS). Its capabilities cover single-sided, double-sided, multilayer, flexible, rigid-flex, and aluminum PCBs, along with DIP/SMT assembly, component sourcing, and turnkey solutions from prototyping to mass production.

ExPlus serves automotive, telecommunications, industrial, medical, consumer electronics, and other applications. With over 25 years of manufacturing experience, the company maintains IATF 16949, ISO 9001, ISO 14001, UL, RoHS/REACH, and CFV certifications to support quality, safety, and environmental standards.

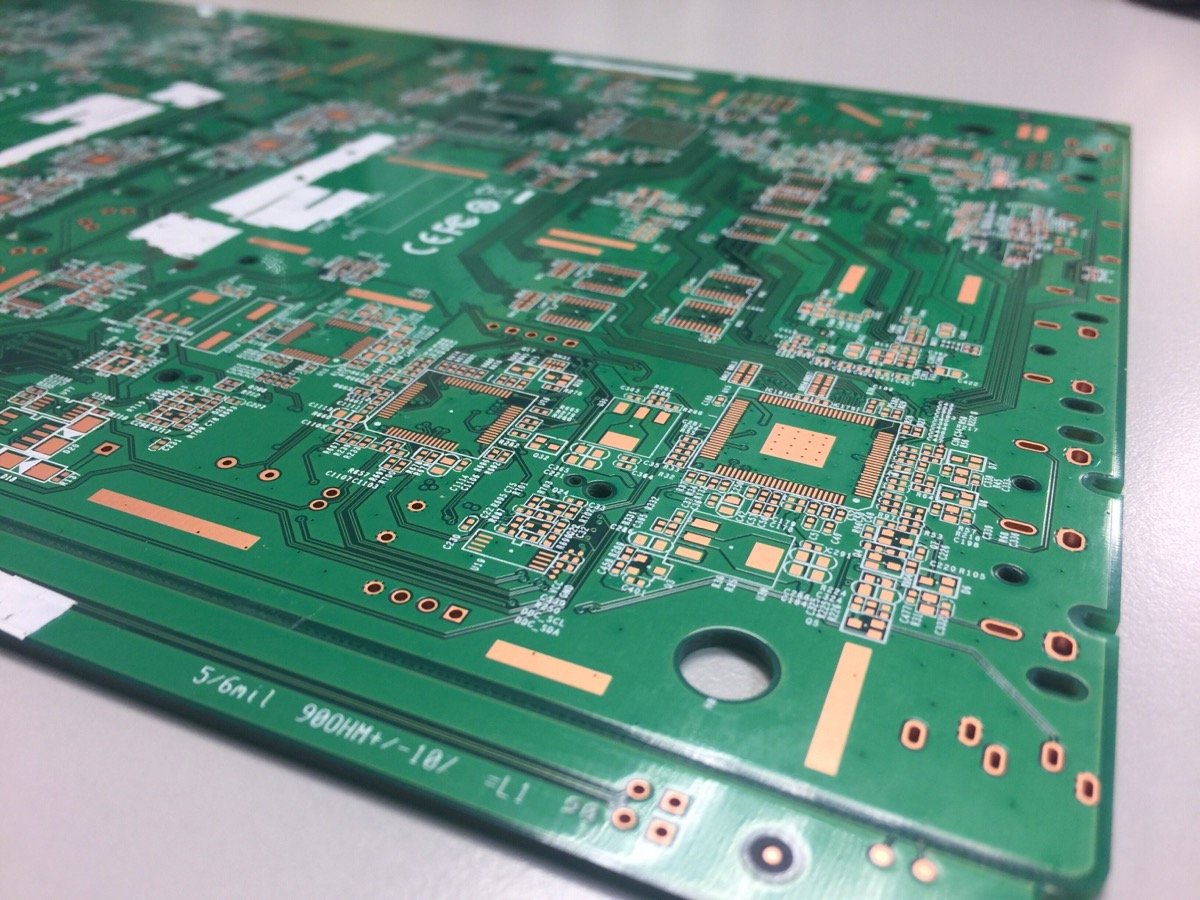

4 Layers Impedance Controlled board with BGA design

Key Features:

● Type: Rigid PCB
● Layers: 4 Layers
● Thickness: 1.6 ± 0.13 mm
● Material: FR4
● Surface Finish: OSP
● Copper Thickness: H/1/1/H oz
● Remark: BGA
● Impedance Control: 50 Ohm; Differential Pair: 90 & 100 Ohm

4 Layers Impedance Controlled board with BGA design

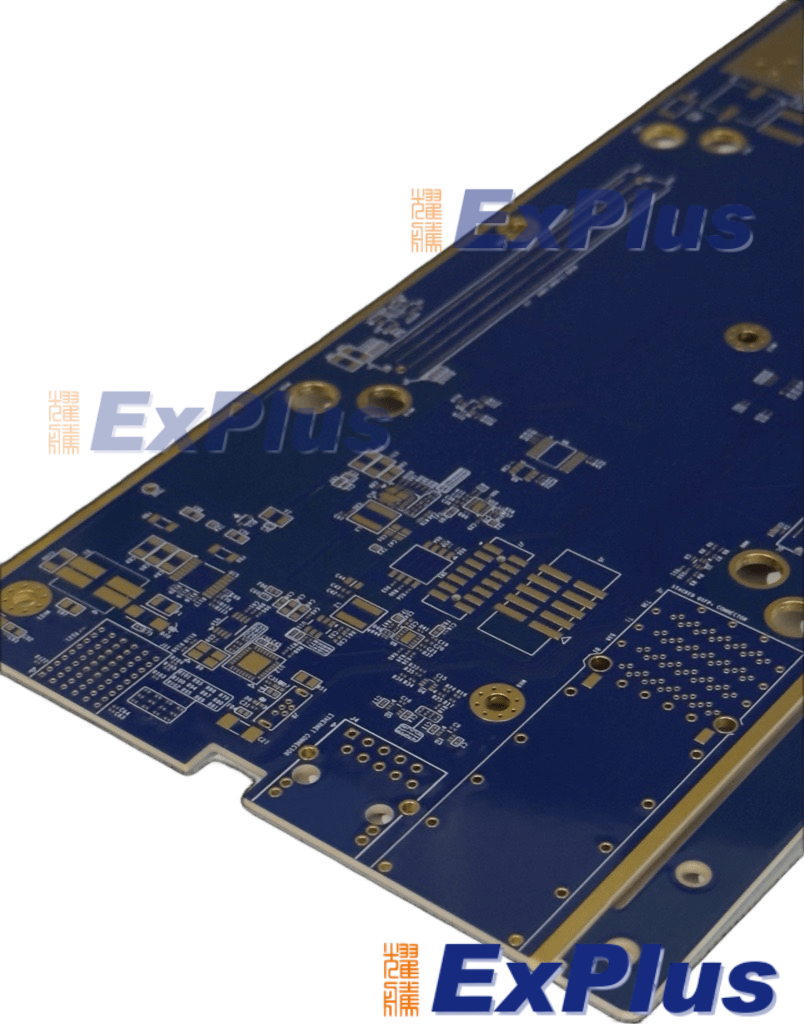

10-Layer High-Frequency PCB for High-Speed Applications

Key Features:

● 10-layer high-frequency, high-speed PCB
● TU883SP substrate with 1.6 ± 0.16 mm board thickness
● Immersion Gold (ENIG) surface finish
● Copper Thickness: 1/1~1/1 oz
● IPC Class 3 with controlled impedance
● Press-Fit and Epoxy Filled Via

10-Layer High-Frequency PCB for High-Speed Applications

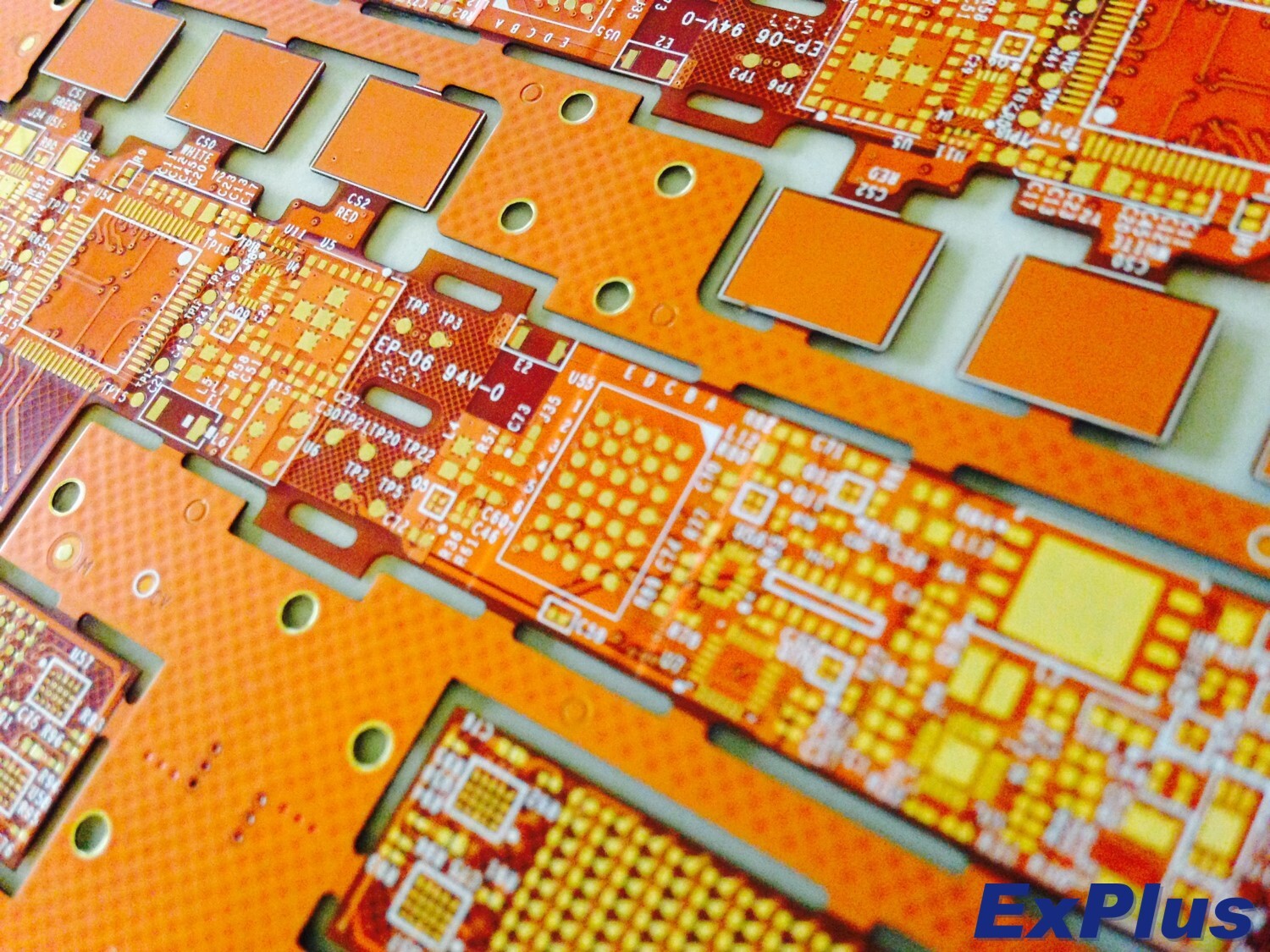

4 Layers Flexible PCB with FR4 stiffener

Key Features:

● Layers: 4 Layers
● Board Thickness: 0.34 ± 0.06 mm
● Surface Finish: Immersion Gold
● Au: 1–4 U"; Ni: 60 U" Min.
● Base Copper Thickness: H~H oz
● Coverlay: 12.5 μm
● Stiffener: FR4
